Small
is Huge
Portable

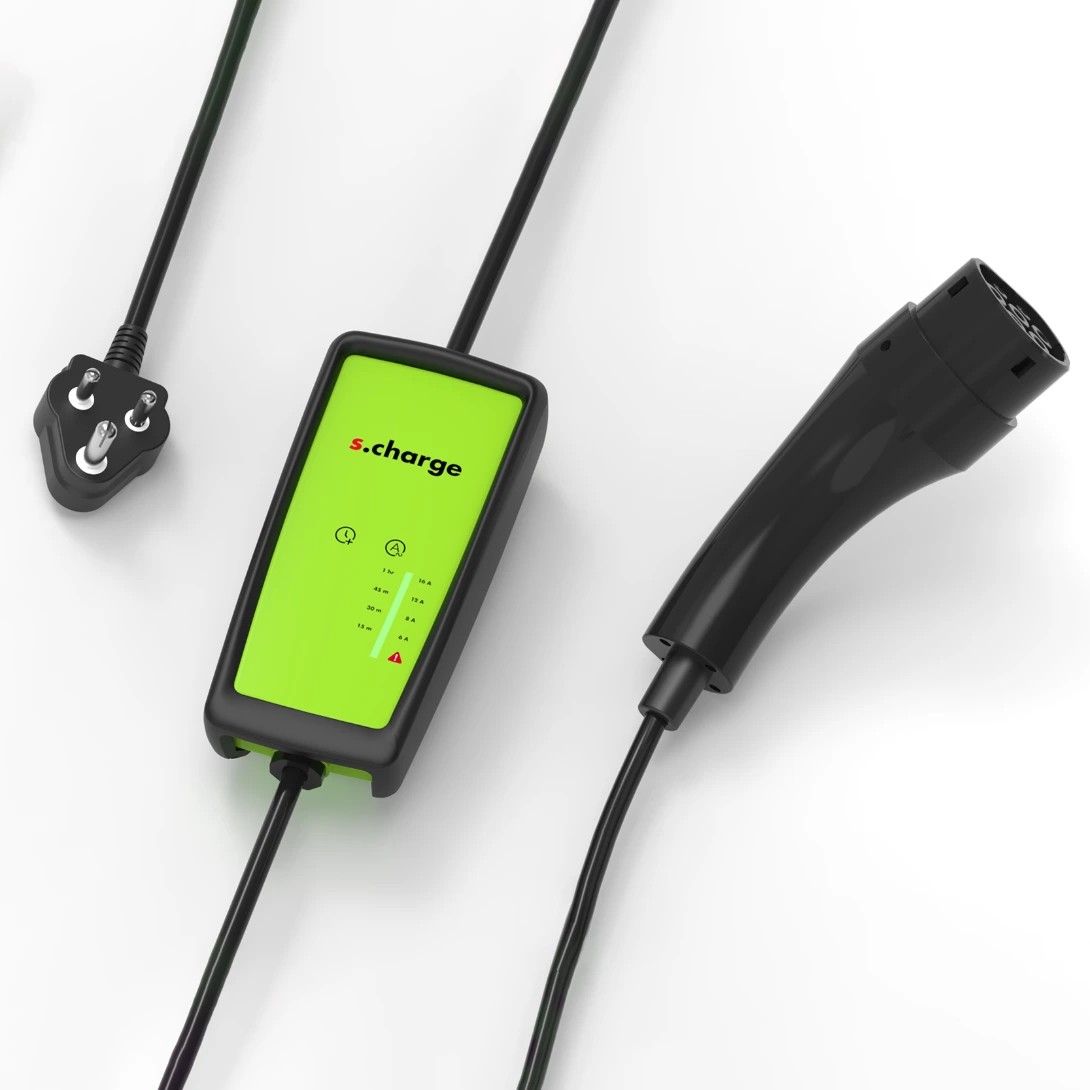

Smallest portable EV Charger
Universal
Works with all EV's *
30%
Smaller than other EV Chargers
7.4
kW - Unmatched power density
Born
to survive
All weather water resistant design
Built
to last
Survives the toughest conditions
A PLATFORM OF POSSIBILITES
SCharge A1 mini is a platform. Choose from what works for your user case. Or let our experts help you choose .
Power packed

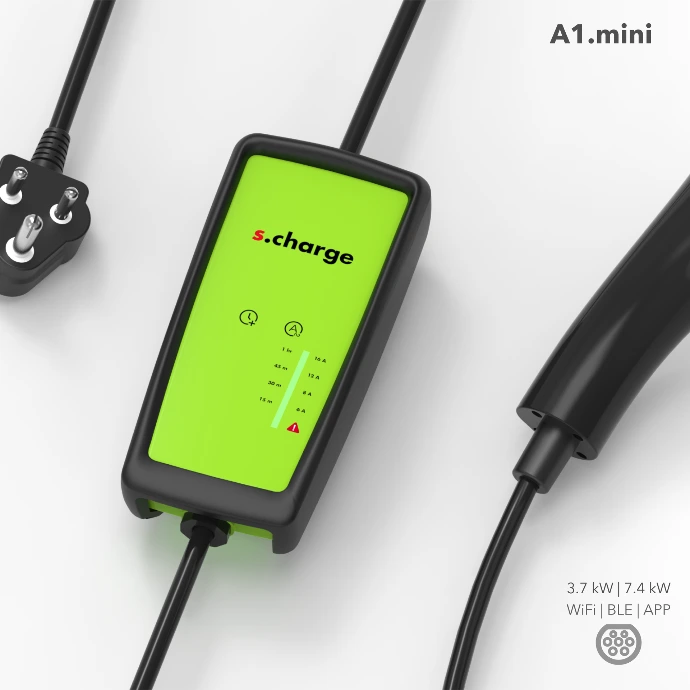

7.4 kW | 3.7 kW options to choose from
Touch the world
Touch buttons for best in class user experience.
Connected
Only portable EV Charger with app connectivity.
RUGGED. RELIABLE.
TESTED TO EXTREME LIMITS
Designed for rough weather conditions. Sun or Rain. It just works
Designed for rough outdoor use
Install our Charger directly in Rain or Sun. Our all weather design work under all outdoor conditions.
Stress Tested to extreme conditions
Our hardware teams are obsessed about testing. Our in-house labs ensure the charger is stress tested to deliver the best field performance.
Warranty backed by our Service Team
Our service backed standard & extended warranty plans are designed to keep you stress free. We understand your anxiety, and our teams work so you sleep well while your car charges at night.
Power Output
A1 mini
16A (1Φ) - 3.7kW
AC Output Voltage
165 - 290 Vac (1Φ L-N)
Output Cable / Gun Type
5m IEC 62196 Type 2 cable for each gun
Mode of Charging
Mode - 2
Power Input
Input Voltage Range
165 - 290 Vac (1Φ L-N)
AC Wiring

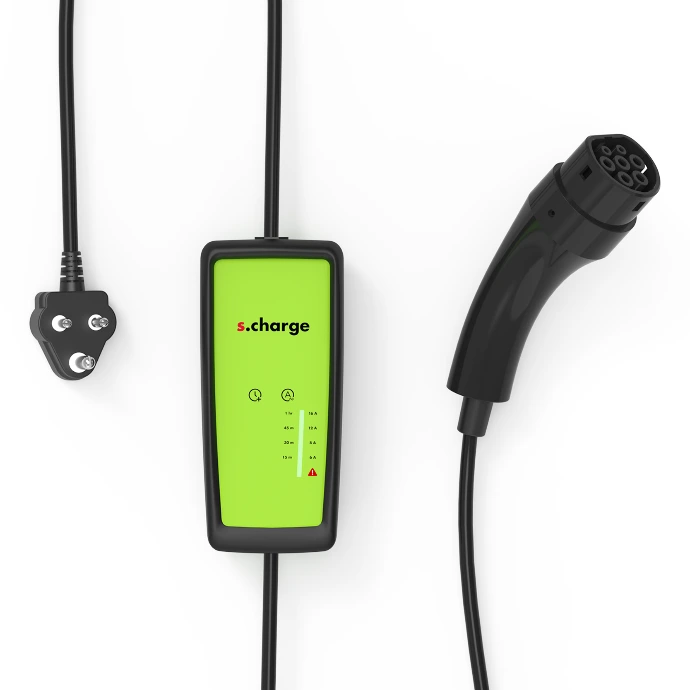

16 A IS 1293 Three Pin Socket
Derating
Current/Power Derating in steps & Time delay possible via button & App
Input Frequency (nominal)
50 / 60 Hz
Input Frequency Range
45 - 65 Hz
Standby Power @ Nom. Voltage
< 4 Watt (standard single gun variant)
Safety
Di-electric Strength Test
3,000 Vac (Common Mode) or 3,000 Vac (Differential)
Insulated Test Between Isolated Terminals
R >1M Ω Over
Voltage Category
II
Residual Current
30mA AC | 6 mA DC
Other Safety Features
Over Current, Under Voltage/Over Voltage, Over Temperature, Power Surge Protection, Earth Monitoring, & Detection
User Interface & Configuration
App
App Connectivity
Support Language
English
User Authentication
Free Vending (Default) or SCharge Mobile App (via BLE)
Connectivity Options
WiFi, BLE
Visual Indication
SMART STATUS & SETTING LED including faults LED
Other Communication
OCPP V 1.6 J (JSON)
Energy Metering
On Request
Setup, Control, & Monitoring
SCharge Mobile app & SCharge NOC (optional)
Load Management
Manual Load Limiting (Max)
1A steps via app
Mechanical
Ingress Protection
IP66 / IP67
Impact Resistance
IK8 for Enclosure
Dimension (H*W*D)
22.2 X 8.6 X 4.5 (cm)
Weight
3 Kg including Charging Gun
Charging Cable Length
5 Meter
Material
PC / PC-ASA UL 94 V-0
Cable Storage & Accessory

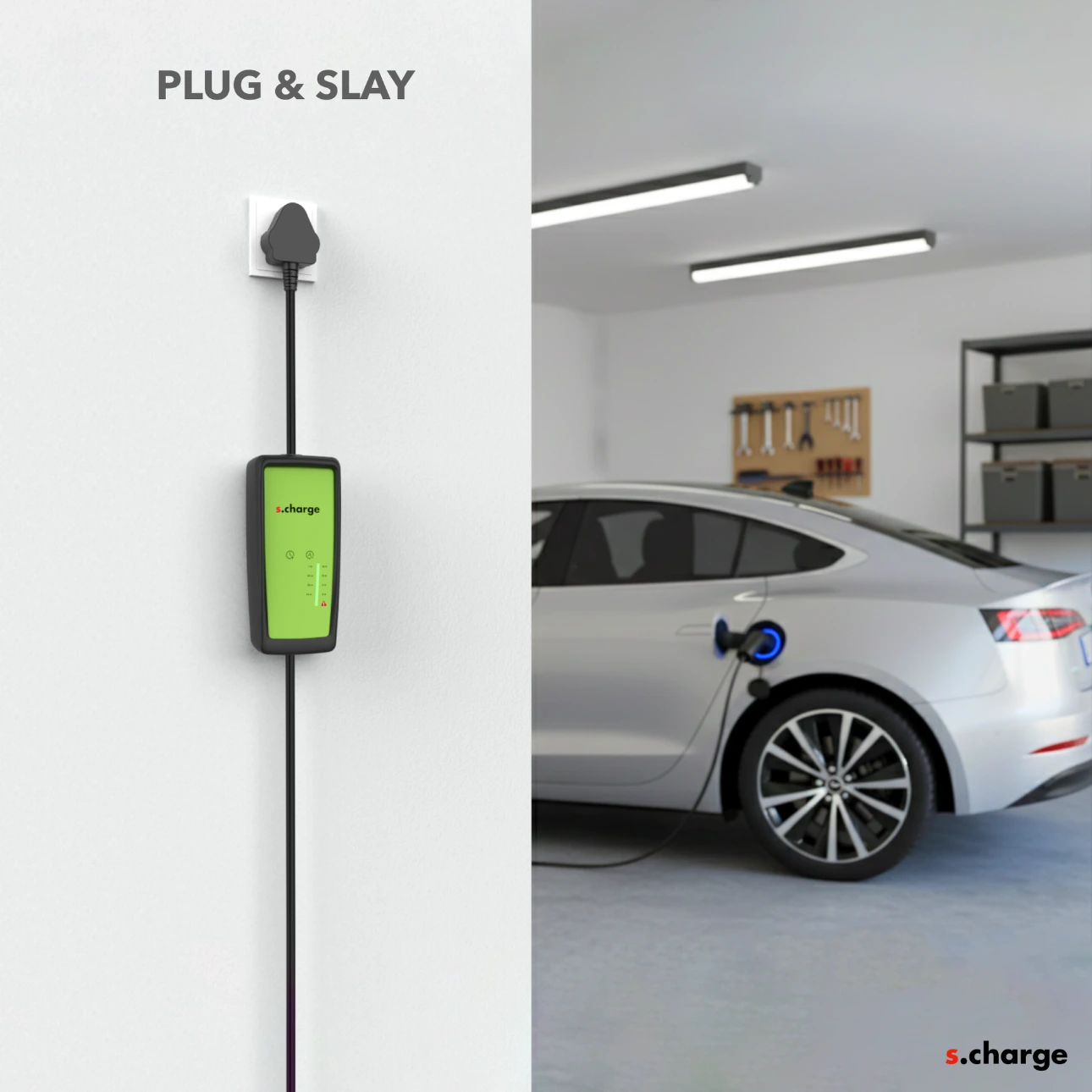

Cable & Gun Holder for wall mount options Portable Carry bag with Wall Mount options with Fixed or Removable mounting Bracket
Cooling
Natural Air
Environmental
Operating Temperature
-20°C to 55°C (full power)
Storage Temperature
-25°C to 60°C
Altitude
2,000 meters
Humidity (Non-Condensing)
5 % to 95 %
Standard & Certification
Compliance Standard
IS17120 | IEC 62752 | ARAI
CE | RoHS
Power Output
A1 mini
32A (1Φ) - 7.4kW
AC Output Voltage
165 - 290 Vac (1Φ L-N)
Output Cable / Gun Type
5m IEC 62196 Type 2 cable for each gun
Mode of Charging
Mode - 2
Power Input
Input Voltage Range
165 - 290 Vac (1Φ L-N)
AC Wiring

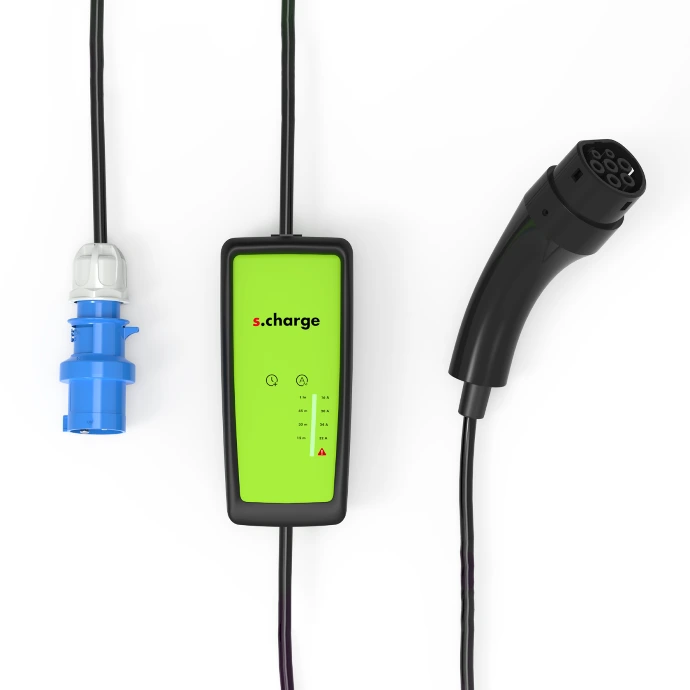

32 A 1Φ - L1/ N/ PE Cable or 32A IEC 60309 Industrial Socket
Derating
Current/Power Derating in steps & Time delay possible via button & App
Input Frequency (nominal)
50 / 60 Hz
Input Frequency Range
45 - 65 Hz
Standby Power @ Nom. Voltage
< 4 Watt (standard single gun variant)
Safety
Di-electric Strength Test
3,000 Vac (Common Mode) or 3,000 Vac (Differential)
Insulated Test Between Isolated Terminals
R >1M Ω Over
Voltage Category
II
Residual Current
30mA AC | 6 mA DC
Other Safety Features
Over Current, Under Voltage/Over Voltage, Over Temperature, Power Surge Protection, Earth Monitoring, & Detection
User Interface & Configuration
App
App Connectivity
Support Language
English
User Authentication
Free Vending (Default) or SCharge Mobile App (via BLE)
Connectivity Options
WiFi, BLE
Visual Indication
SMART STATUS & SETTING LED including faults LED
Other Communication
OCPP V 1.6 J (JSON)
Energy Metering
On Request
Setup, Control, & Monitoring
SCharge Mobile app & SCharge NOC (optional)
Load Management
Manual Load Limiting (Max)
1A steps via app
Mechanical
Ingress Protection
IP66 / IP67
Impact Resistance
IK8 for Enclosure
Dimension (H*W*D)
22.2 X 8.6 X 4.5 (cm)
Weight
3 Kg including Charging Gun
Charging Cable Length
5 Meter
Material
PC / PC-ASA UL 94 V-0
Cable Storage & Accessory
Cable & Gun Holder for wall mount options Portable Carry bag with Wall Mount options with Fixed or Removable mounting Bracket
Cooling
Natural Air
Environmental
Operating Temperature
-20°C to 55°C (full power)
Storage Temperature
-25°C to 60°C
Altitude
2,000 meters
Humidity (Non-Condensing)
5 % to 95 %
Standard & Certification
Compliance Standard
IS17120 / IEC 62752 | ARAI
CE | RoHS
