Touch Display
Industrial grade colour Touch LCD.
Best in class user experiences.
Tested. Trusted.
Rugged & Reliable.
Supported. Service backed.
Quick & Easy installation. Warranted.
Design that has emotion
Sleek that stands out
A PLATFORM OF POSSIBILITES
SCharge A1 Pro is a platform. Choose from what works for your application. Or let our experts help you choose .
Power of 2

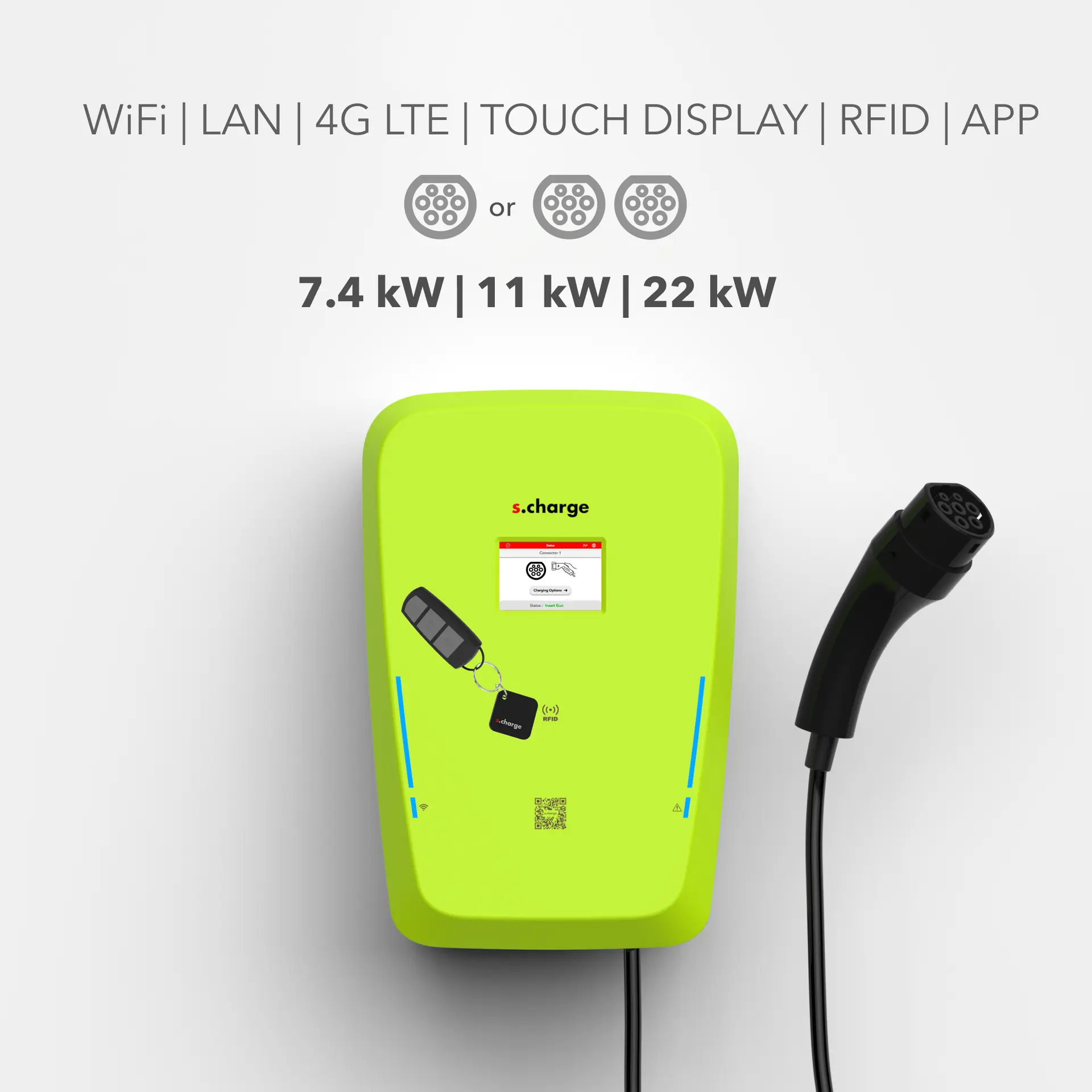

7.4 kW | 11 kW | 22 kW with an options of 1 or 2 Type 2 Guns. Max input power of 44 kW with dynamic load management including power derating

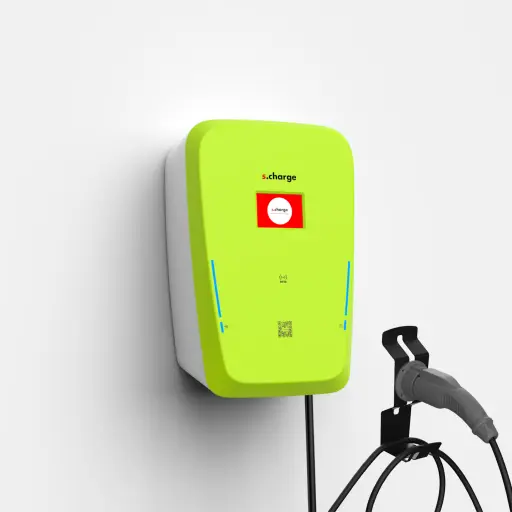

Touch the world
Industrial grade touch screen for best in class user experience. You deserve the best.
Connected
Our chargers are connected with either via LAN, Wifi, GSM, RFID and or our APP
RUGGED. RELIABLE.
TESTED TO EXTREME LIMITS

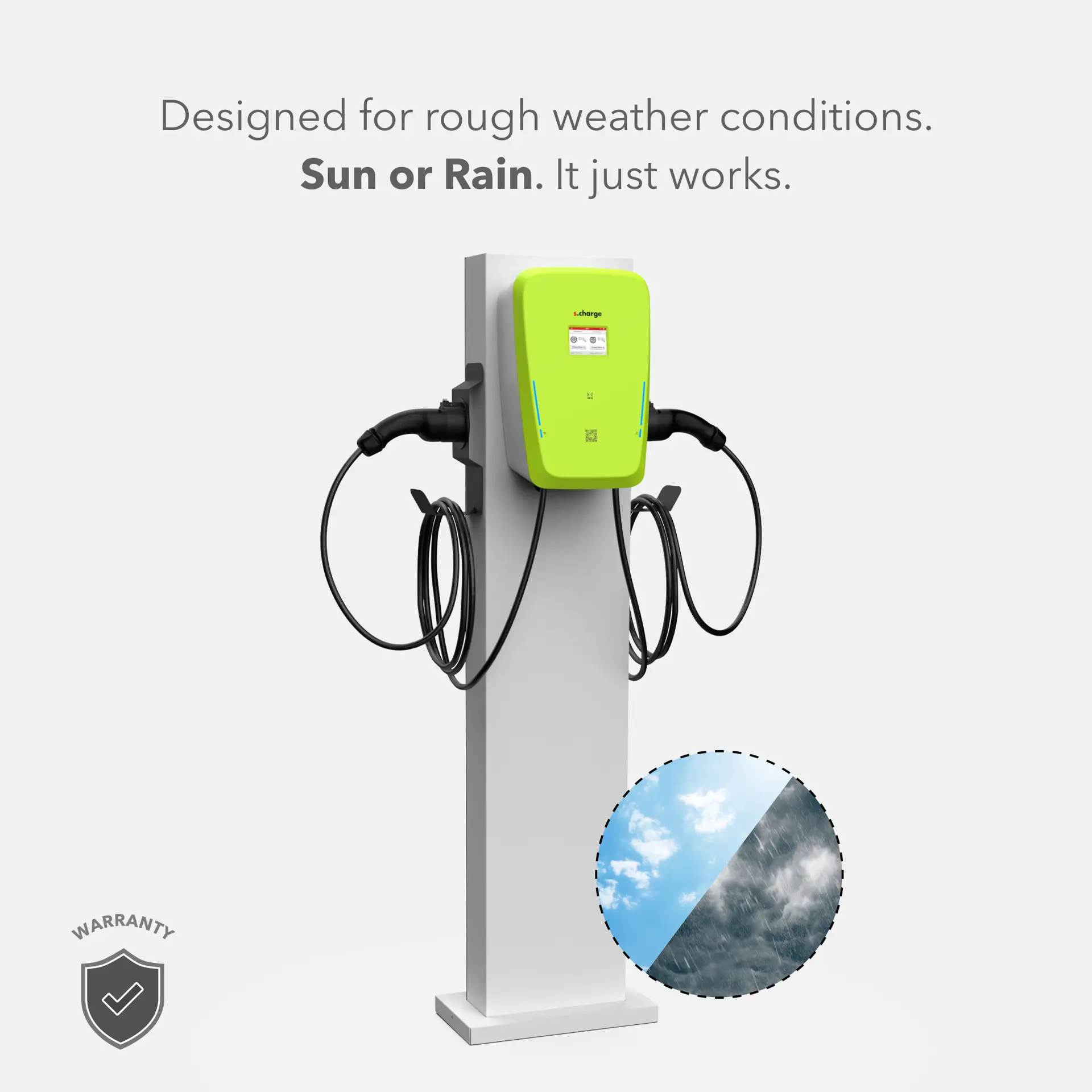

Designed for rough weather conditions. Sun or Rain. It just works
Designed for rough outdoor use
Install our Charger directly in Rain or Sun. Our all weather design work under all outdoor conditions.
Stress Tested to extreme conditions
Our hardware teams are obsessed about testing. Our in-house labs ensure the charger is stress tested to deliver the best field performance.
Warranty backed by our Service Team
Our service backed standard & extended warranty plans are designed to keep you stress free. We understand your anxiety, and our teams work so sleep well while your car charges at night.
Your Title
Power Output

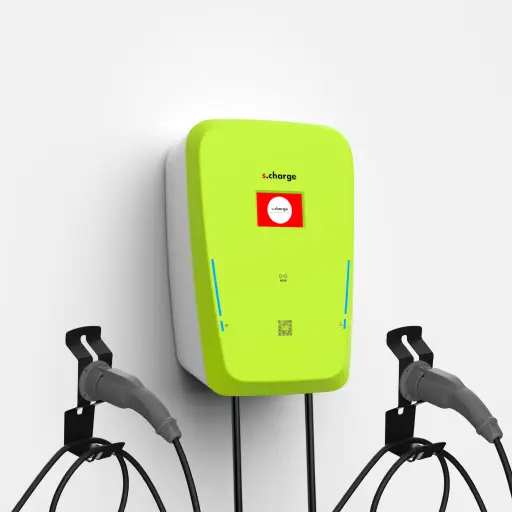

Dual Gun (Optional)
32A (1Φ) - 7.4kW
16A (3Φ) - 11kW
32A (3Φ) - 22kW
Single Gun
32A (1Φ) - 7.4kW
16A (3Φ) - 11kW
32A (3Φ) - 22kW
AC Output Voltage
165 - 290 Vac (1Φ L-N), 285- 502 Vac (3Φ L-L)
Output Cable / Gun Type
5m IEC 62196 Type 2 cable for each gun
Mode of Charging
Mode - 3
Power Input
Input Voltage Range
165 - 290 Vac (1Φ L-N), 347 - 480 Vac (3Φ L-L)
AC Wiring
1Φ - L1/ N/ PE or 3Φ - L1/ L2/ L3/ N/ PE
Derating
Phase and Variable Current/Power Derating Possible
Input Frequency (nominal)
50 / 60 Hz
Input Frequency Range
45 - 65 Hz
Standby Power @ Nom. Voltage
< 5 Watt (standard single gun variant)
Safety
Di-electric Strength Test
3,000 Vac (Common Mode) or 3,000 Vac (Differential) as per IEC61851-1/IS17017-1
Insulated Test Between Isolated Terminals
R >1M Ω Over
Voltage Category
III
Residual Current
30mA AC | 6 mA DC
Other Safety Features
Over Current, Under Voltage/Over Voltage, Over Temperature, Power Surge Protection, Earth Monitoring, & Detection
User Interface & Configuration
Display
3.5” Colour Touch Industrial Grade LCD Display
Support Language
English, Multi Lingual for Displays Variants (Any 4 Languages Indian or Foreign)
User Authentication
RFID, SCharge Mobile App (for both Online charger & Offline charger via BLE), UPI Charge, Pin(Display Variant only), OTP, Free Vending, & 3rd Party OCPP
Connectivity Options
WiFi, BLE, Ethernet (RJ45), 4G/LTE(optional) with fallback & M2M Support (Optional)
Visual Indication
SMART STATUS LED including faults and network status & Touch LCD Display
Other Communication
OCPP V 1.6 J (JSON)
Energy Metering
Class 1.0, UPF
Setup, Control, & Monitoring
SCharge Mobile app & SCharge CMS (optional)
Load Management
Manual Load Limiting (Max)
1A steps via app
Smart Charging
Via OCPP /SCharge App for scheduling and Solar Hours Charging
Mechanical
Ingress Protection
IP55 / IP65 (optional)
Impact Resistance
IK10 for Enclosure
Dimension (H*W*D)
41 X 27 X 17 (cm)
Weight
6.5 Kg Single Gun / 9.5 Kg Dual Gun
Charging Cable Length
5 Meter
Material
PC / PC-ASA UL 94 V-0
Cable Storage
Cable & Gun Holder Mounting Wall & Pedestal Stand (Optional)
Cooling
Natural Air
Environmental
Operating Temperature
-10°C to 55°C (full power)
Storage Temperature
-20°C to 60°C
Altitude
2,000 meters
Humidity (Non-Condensing)
5 % to 95 %
Standard & Certification
Compliance Standard
IS17017 -1 / IEC 61851-1 | ARAI Certified
Power Output
Single Gun
32A (1Φ) - 7.4kW
16A (3Φ) - 11kW
32A (3Φ) - 22kW

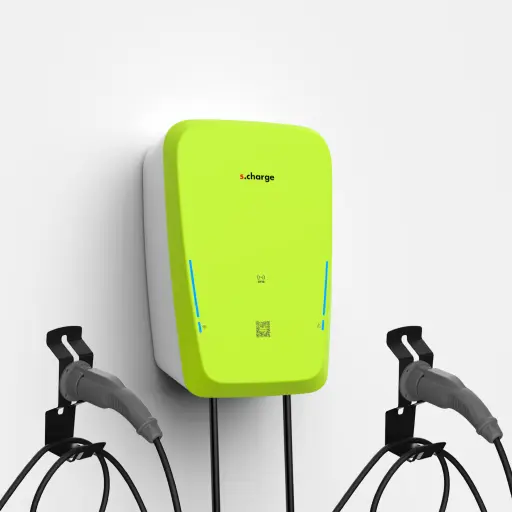

Dual Gun (Optional)
32A (1Φ) - 7.4kW
16A (3Φ) - 11kW
32A (3Φ) - 22kW
AC Output Voltage
165 - 290 Vac (1Φ L-N), 285- 502 Vac (3Φ L-L)
Output Cable / Gun Type
5m IEC 62196 Type 2 cable for each gun
Mode of Charging
Mode - 3
Power Input
Input Voltage Range
165 - 290 Vac (1Φ L-N), 347 - 480 Vac (3Φ L-L)
AC Wiring
1Φ - L1/ N/ PE or 3Φ - L1/ L2/ L3/ N/ PE
Derating
Phase and Variable Current/Power Derating Possible
Input Frequency (nominal)
50 / 60 Hz
Input Frequency Range
45 - 65 Hz
Standby Power @ Nom. Voltage
< 5 Watt (standard single gun variant)
Safety
Di-electric Strength Test
3,000 Vac (Common Mode) or 3,000 Vac (Differential) as per IEC61851-1/IS17017-1
Insulated Test Between Isolated Terminals
R >1M Ω Over
Voltage Category
III
Residual Current
30mA AC | 6 mA DC
Other Safety Features
Over Current, Under Voltage/Over Voltage, Over Temperature, Power Surge Protection, Earth Monitoring, & Detection
User Interface & Configuration
Display

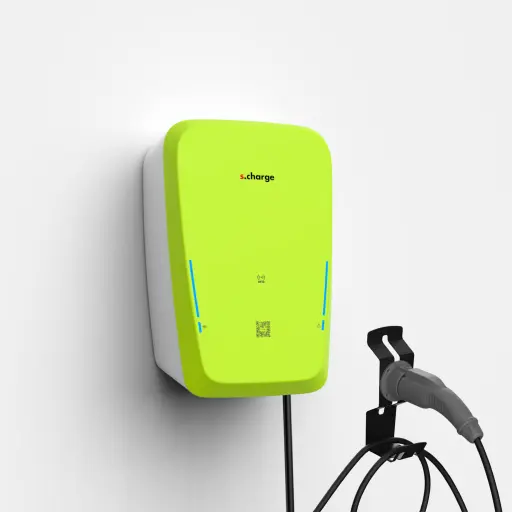

No display available in this variant.
Support Language
English, Multi Lingual for Displays Variants (Any 4 Languages Indian or Foreign)
User Authentication
RFID, SCharge Mobile App (for both Online charger & Offline charger via BLE), UPI Charge, OTP, Free Vending, & 3rd Party OCPP
Connectivity Options
WiFi, BLE, Ethernet (RJ45), 4G/LTE(Optional) with fallback & M2M Support (Optional)
Visual Indication
SMART STATUS LED including faults and network status
Other Communication
OCPP V 1.6 J (JSON)
Energy Metering
Class 1.0, UPF
Setup, Control, & Monitoring
SCharge Mobile app & SCharge CMS (optional)
Load Management
Manual Load Limiting (Max)
1A steps via app
Smart Charging
Via OCPP /SCharge App for scheduling and Solar Hours Charging
Mechanical
Ingress Protection
IP55 / IP65 (optional)
Impact Resistance
IK10 for Enclosure
Dimension (H*W*D)
41 X 27 X 17 (cm)
Weight
6.5 Kg Single Gun / 9.5 Kg Dual Gun
Charging Cable Length
5 Meter
Material
PC / PC-ASA UL 94 V-0
Cable Storage
Cable & Gun Holder Mounting Wall & Pedestal Stand (Optional)
Cooling
Natural Air
Environmental
Operating Temperature
-10°C to 55°C (full power)
Storage Temperature
-20°C to 60°C
Altitude
2,000 meters
Humidity (Non-Condensing)
5 % to 95 %
Standard & Certification
Compliance Standard
IS17017 -1 / IEC 61851-1 | ARAI Certified
